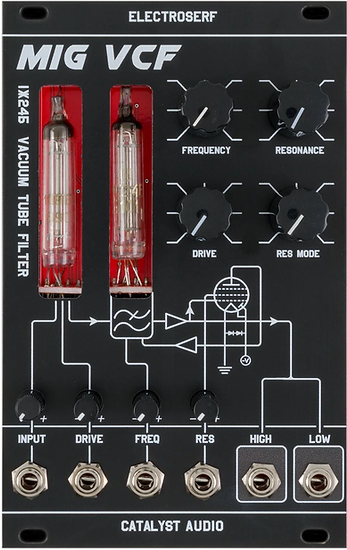

MIG VCF
Analog Vacuum Tube Filtering

Feature Overview

True Vacuum tube filtering

Low power draw

100% Analog

NOS Cold War Era Vintage Tubes

Hi Pass and Low Pass outputs

CV control of major parameters

Description

A very unique voltage controlled filter.

3 NOS former soviet vacuum tubes form the heart - One that sets the input level to the filter. One that controls (and saturates) the filter core, and a third vacuum tube (behind the panel) that controls the resonance pathway. The non-linear nature of the vacuum tubes give this filter a truly unique sound. The resonance is very aggressive while still sounding musical.

Specifications

HP 16
POWER DRAW (+RAIL) 44 mA
POWER DRAW (-RAIL) 60 mA
MODULE DEPTH approx. 35mm
